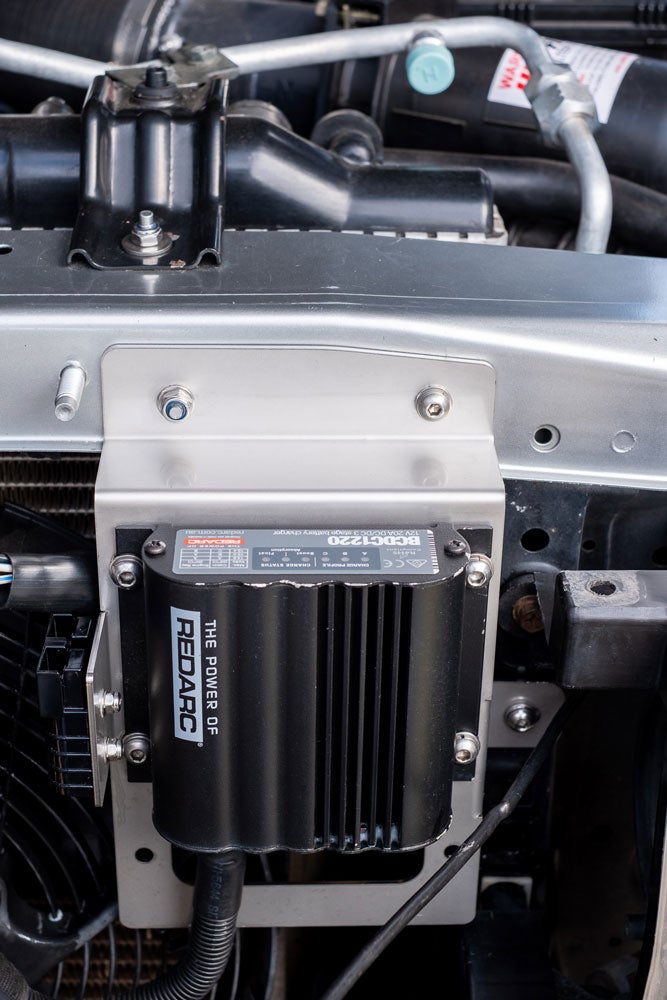

The AGOR Y61 S4+ BCDC Bracket mounts up to passenger-side of the radiator support panel. This location ensures that the BCDC unit is mounted close to the auxiliary battery whilst receiving maximum airflow, in turn maintaining optimum charge temps. This mount utilises the factory hole positions for mounting, and requires minimal trimming to the vehicle's grille (refer to product images).

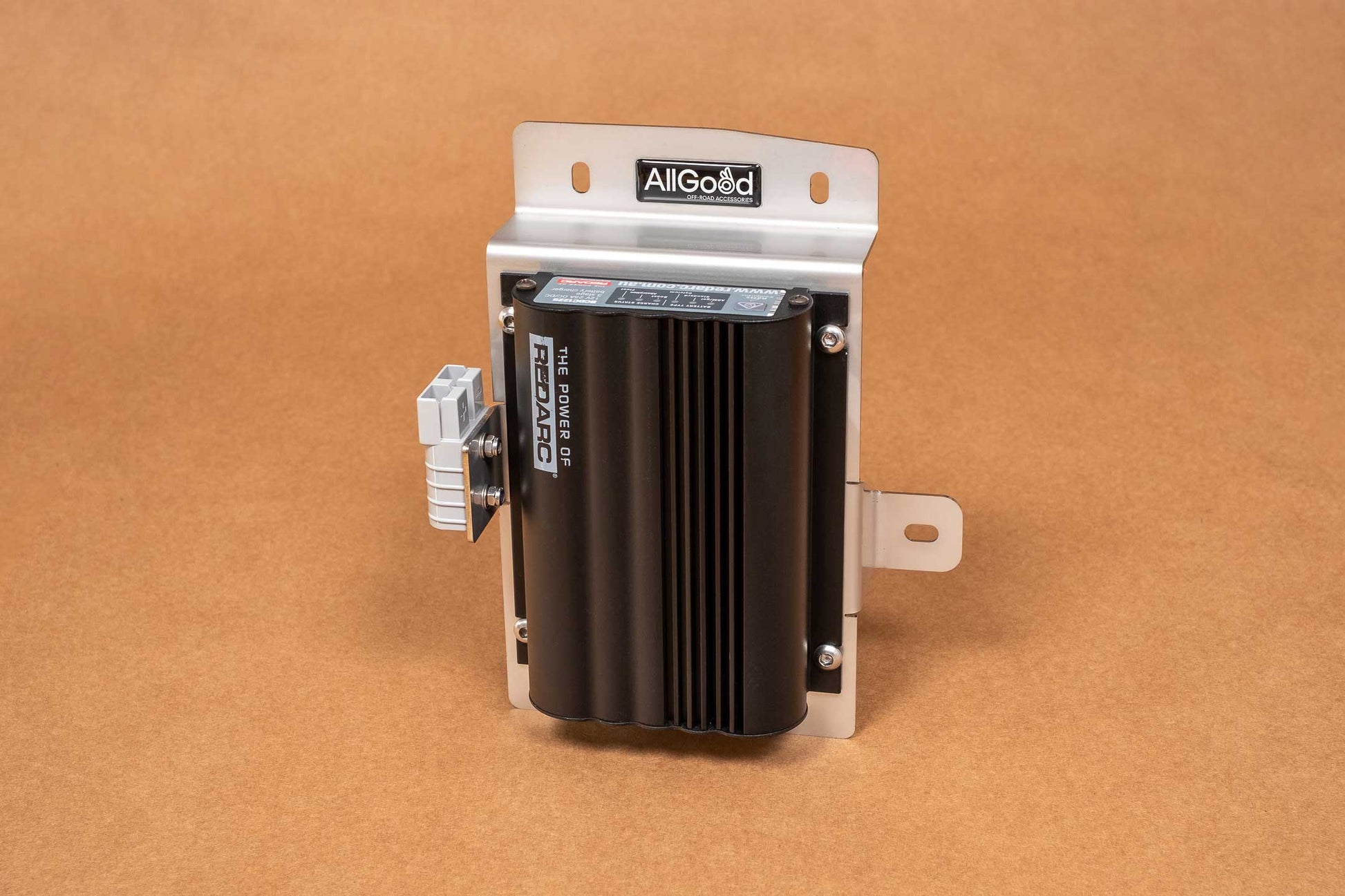

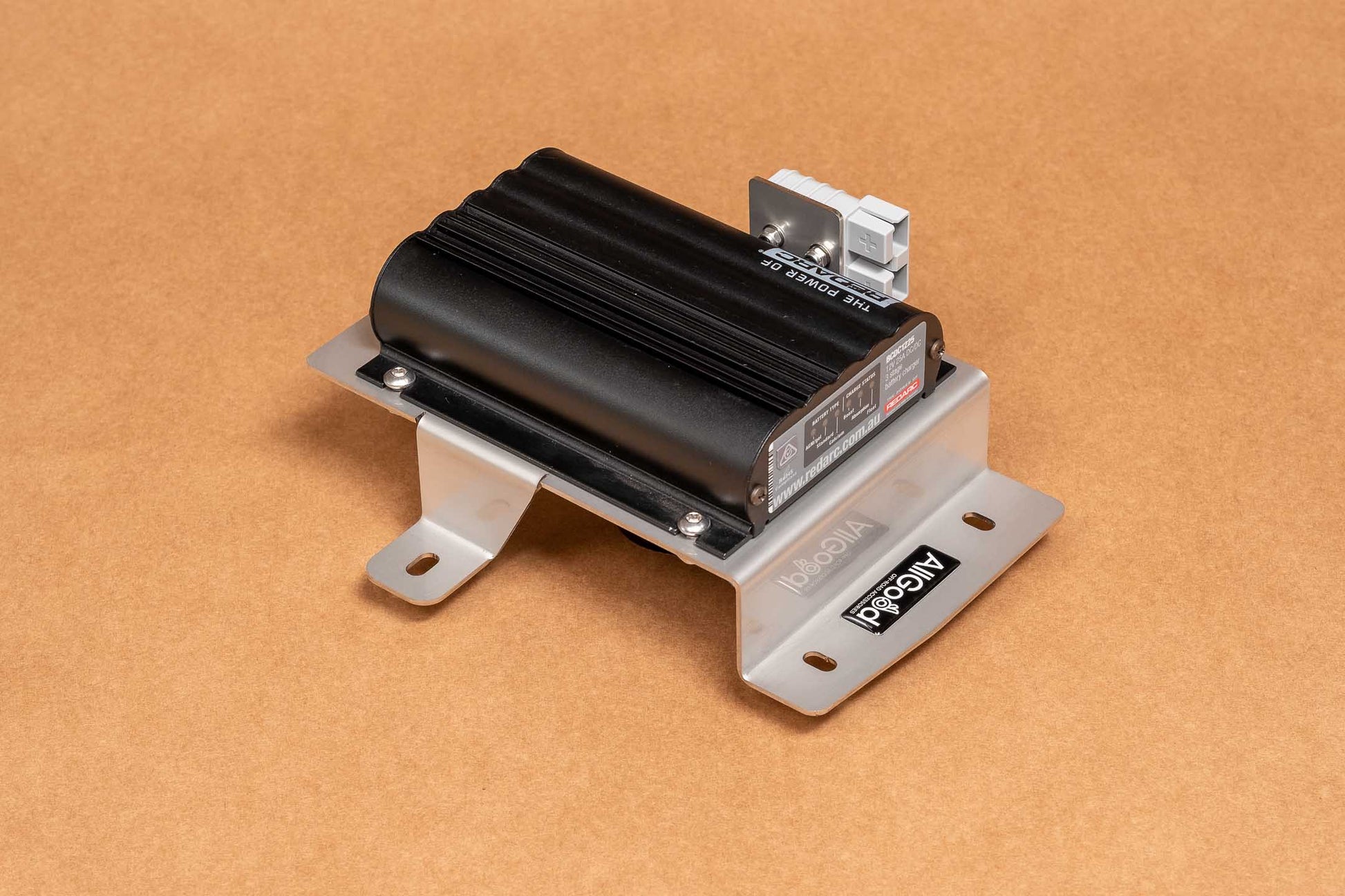

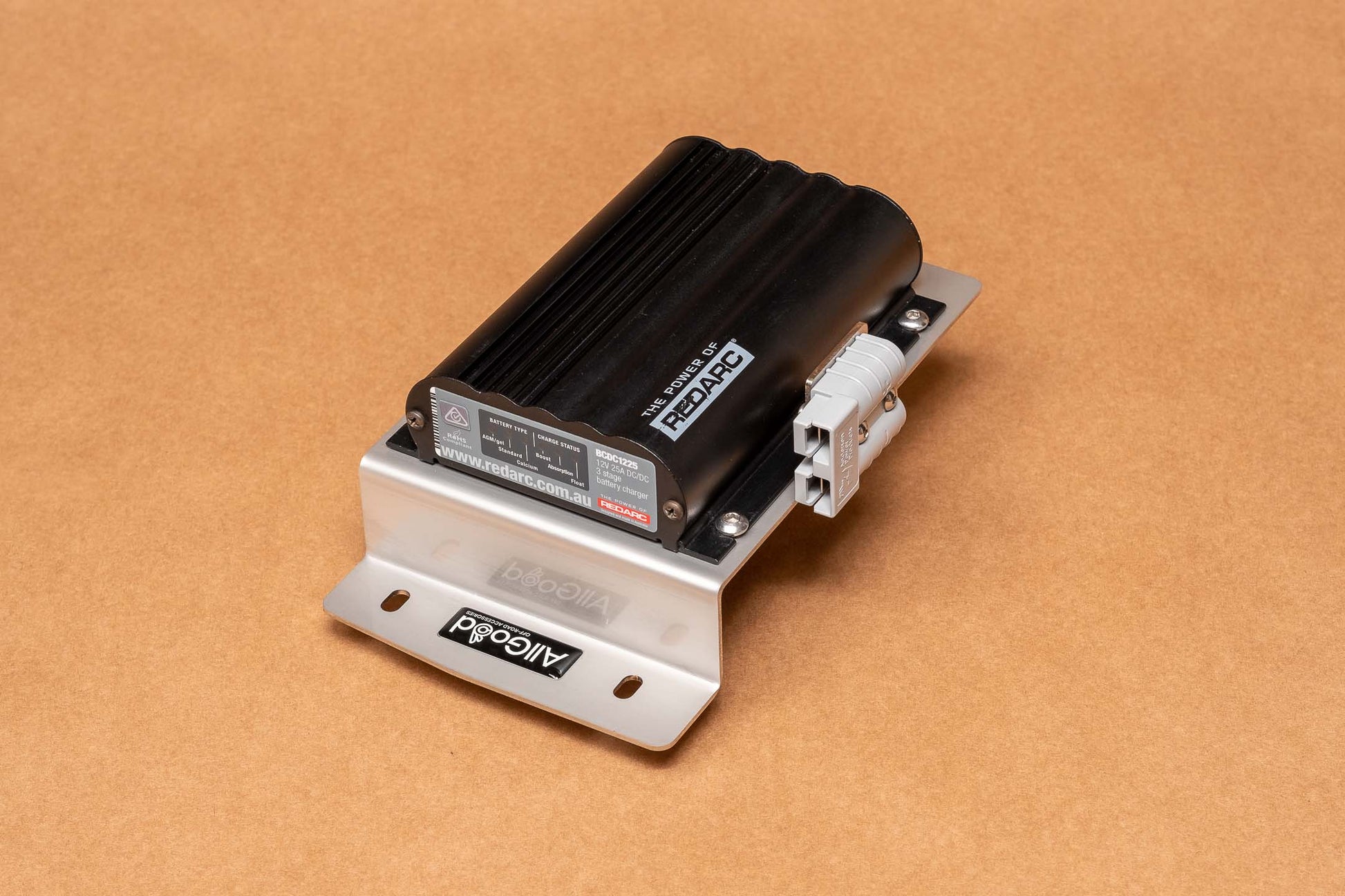

This panel supports the mounting of Redarc's 1220, 1225, 1240 or 1250A BCDC chargers + location for Anderson connector for solar input. It is possible that other makes of DCDC chargers may fit this panel, however, you will need to add your own provisions for fixings.
***Note: This panel fits series IV and later GU Patrols only.
Product Features: - Made from durable laser-cut stainless steel - Uses factory hole positions for mounting - Supports the Redarc's 1220, 1225, 1240 or 1250A BCDC chargers
***No electrical components are included***

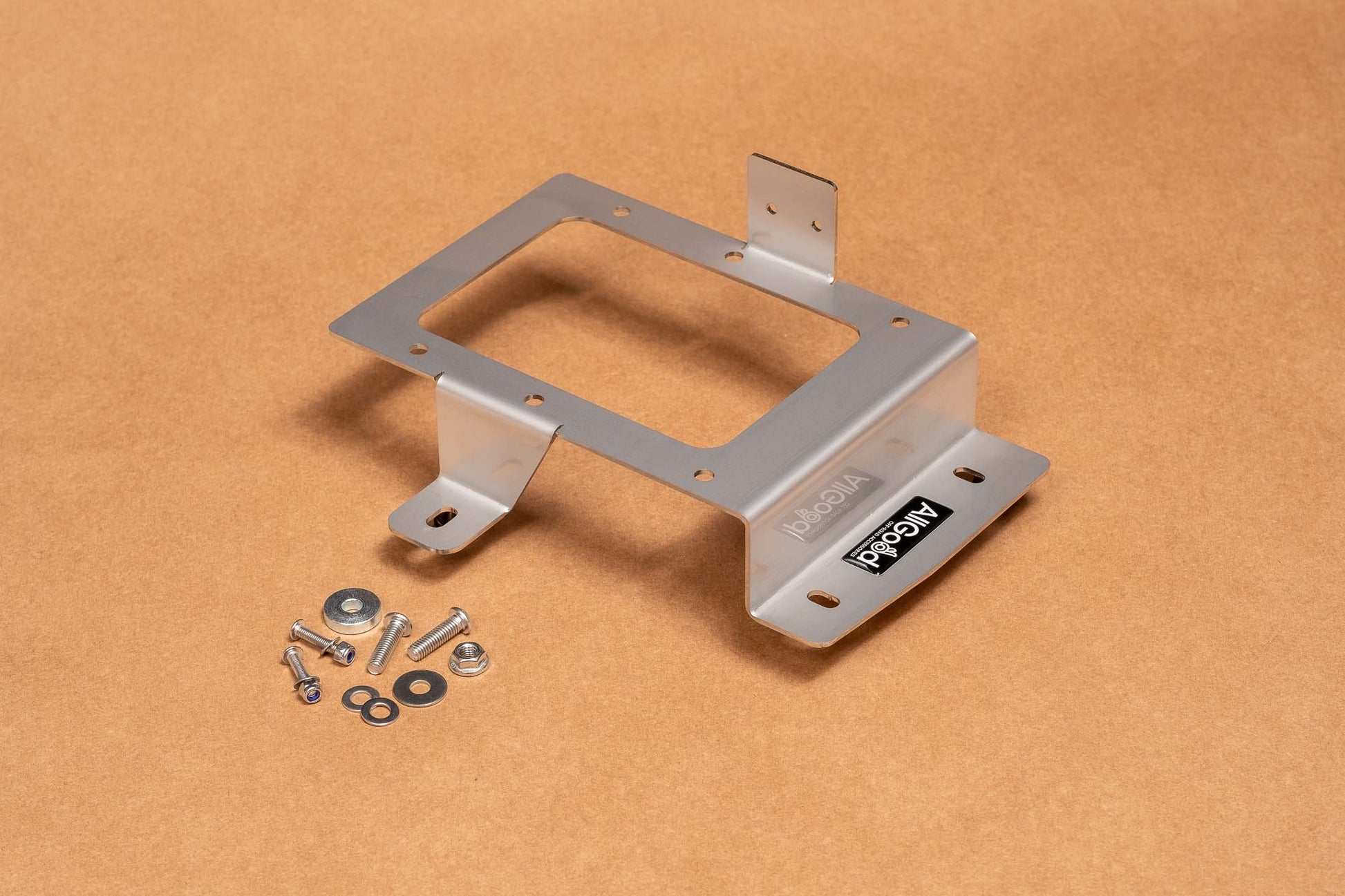

What's included: - 1x Laser-cut SS panel - SS hardware required to fit panel to vehicle only
Recommended parts: Anderson 2-Position Connector Redarc 1220, 1225, 1240 or 1250A BCDC charger
Proudly designed and made in Australia by All Good Off-Road.
